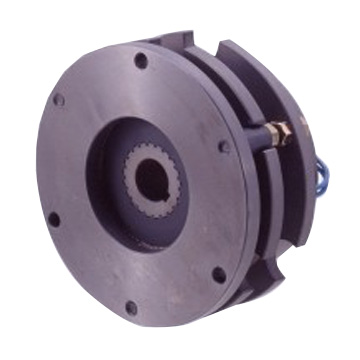

MNB Electromagnetic Spring-Applied Brake

Electromagnetic Power Off Brake

FEATURES

FAST RESPONSE TIME
The MNB series spring actuated brakes generate rapid toruqe buildup that gives rapid response.

CAN HANDLE REPEATED STOPS
The MNB series is designed to not only hold a load, but also stop it.

INSTALLATION ON SHORT SHAFTS
Short shaft designs can be accommodated because the mounting surface is on the inner drive side.

OPERATING VOLTAGE OPTIONS
RNB units come in two standard voltages, 90VDC and 24VDC. Other non-standard voltages are available.

EASILY ADJUSTABLE TORQUE
The torque can be adjusted over a wide range of settings via an adjusting bolt. This feature allows for controllable braking time.

MANUAL RELEASE AVAILABLE
Holes are provided so a bolt can be inserted to provide for a manual release. Other special designs are possible.

WIDE VARIETY OF CONTROLS AVAILABLE
Ogura has a wide selection of readily available controls to help control brakes for various applications.

Click on column heading to sort table by category

Model
No.
Ogura
P/N
Static
Torque
(ft-lbs)
max
RPM
Bore
(inch)
Volts/
Watts
Keyway Wgt
(lbs)
PIC PDF DXF
MNB-0.2K (90V) 23391000 1.5 4000 12mm 90/13.5 4x1.5 1.80 picture icon Download PDF DXF
MNB-0.2G (24V) 23523900 1.5 4000 12mm 24/12 4x1.5 1.80 picture icon Download PDF DXF
MNB-20J (72V) 23526900 144 2500 42mm 72/70 12x3.5 41.00 picture icon Download PDF DXF
MNB-20K (90V) 23364900 150 2500 42mm 90/53 12x3.5 41.00 picture icon Download PDF DXF
MNB-2.5K (90V) 23364600 18 3000 24mm 90/35 7x3 11.00 picture icon Download PDF DXF
MNB-2.5G (24V) 23524100 18 3000 24mm 24/39 7x3 11.00 picture icon Download PDF DXF
MNB-40K (90V) 23486700 288 2000 55mm 90/98 16x5 76.00 picture icon Download PDF DXF
MNB-40J (72V) 23527000 288 2000 55mm 72/94 16x5 76.00 picture icon Download PDF DXF
MNB-0.4K (90V) 23391100 3 4000 14mm 90/15.5 5x2 2.20 picture icon DXF
MNB-0.4G (24V) 23524000 3 4000 14mm 24/15.5 5x2 2.20 picture icon Download PDF DXF
MNB-5K (90V) 23364700 37 3000 28mm 90/42 7x31 16.00 picture icon Download PDF DXF
MNB-5G (24V) 23523000 37 3000 28mm 24/42 7x31 16.00 picture icon Download PDF DXF
MNB-80K (90V) 23507000 590 2000 65mm 90/130 18x6 136.00 picture icon Download PDF DXF
MNB-80J (72V) 23527100 590 2000 65mm 72/130 18x6 136.00 picture icon Download PDF DXF
MNB-0.8K (90V) 23391200 6 3500 19mm 90/20 5x3 3.30 picture icon Download PDF DXF
MNB-0.8G (24V) 23523600 6 3500 19mm 24/19 5x3 3.30 picture icon Download PDF DXF
MNB-10K (90V) 23364800 74 2500 32mm 90/53 10x3.5 24.00 picture icon Download PDF DXF
MNB-10G (24V) 23524200 74 2500 32mm 24/53 10x3.5 24.00 picture icon Download PDF DXF
MNB-1.2K (90V) 23364500 9 3500 19mm 24/24 5x3 7.30 picture icon Download PDF DXF
MNB-1.2G (24V) 23523700 9 3500 19mm 24/24 5x3 7.30 picture icon Download PDF DXF
