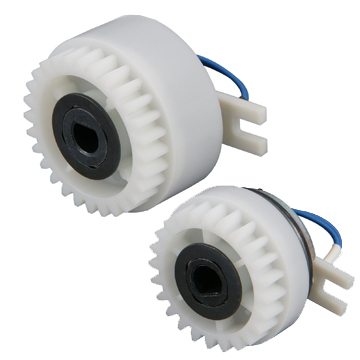

MIC Electromagnetic Clutch

Electromagnetic Clutch/Brake

FEATURES

CUSTOM MOLDED GEAR
The MIC assembly includes a custom-molded gear or timing pulley designed to your specifications.

ONE PIECE ASSEMBLY
The entire assembly is delivered pre-assembled, so it simply slides onto the shaft. There are no adjustments to make or gaps to set.

BI-DIRECTIONAL OPERATION
The clutch has the ability to drive clockwise or counterclockwise.

PERMANENT MAGNET RETURN
All standard units come with a permanent magnet armature return attached to the inside of the gear. This provides a fast and smooth disengagement of the armature when power is released to the clutch coil.

ZERO BACKLASH
If needed the armature can incorporate a one-piece spring that eliminates backlash.

LONG LIFE
Special bushings allow for millions of operating cycles for most applications.

D-CUT BORE
The bore of the clutch is made to fit a D-cut shaft to simplify installation and eliminate the need for set screws.

TWO CLUTCH POWER CONNECTION OPTIONS AVAILABLE
MIC clutches can come complete with a lead wire and a customer's specified terminal or the standard connector built into the clutch coil housing.

Click on column heading to sort table by category

Model
No.
Ogura
P/N
Static
Torque
(ft-lbs)
max
RPM
Bore
(inch)
Volts/
Watts
Keyway Wgt
(lbs)
PIC PDF DXF
MIC-8 0 0.591 300 8mm 24/3.7 D-cut 0.26 picture icon Download PDF
MIC-5 0 0.367 300 8mm 24/3.7 D-cut 0.20 picture icon Download PDF
MIC-2.5 0 0.183 300 6mm 24/3.4 D-cut 0.11 picture icon Download PDF
