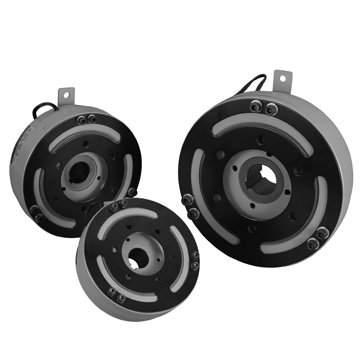

MMC Electromagnetic Clutch

Electromagnetic Clutch/Brake

FEATURES

HEAVY DUTY DESIGN
The MMC series utilize a special plate spring that resists engine vibration and shock.

EASY MOUNTING
Mounting is a snap on these stationary coil type clutches. The coil is supported by a ball bearing. Alignment and maintenance are not required.

ROTATION FLEXIBILITY
Rotation may be clockwise or counterclockwise.

LONGEVITY
Efficient heat dissipation allows long life even in heavy duty applications. Clutch surface is tempered to provide effective rust protection.

COMPACT AND HIGH TORQUE
The compact design of the MMC series requires minimal space while providing high torque.

Click on column heading to sort table by category

Model
No.
Ogura
P/N
Static
Torque
(ft-lbs)
max
RPM
Bore
(inch)
Volts/
Watts
Keyway Wgt
(lbs)
PIC PDF DXF
MMC-200G 23540000 1475 1600 80mm 24/150 20x6 174.00 picture icon Download PDF DXF
MMC-100E 23369400 737 1800 70mm 12/100 18x6 104.00 picture icon Download PDF DXF
MMC-70E 23369300 516 2500 60mm 12/90 15x5 70.00 picture icon Download PDF DXF
MMC-20E 23369100 150 3000 40mm 12/50 10x3.5 26.00 picture icon Download PDF DXF
MMC-40E 23369200 295 3000 50mm 12/65 15x5 43.00 picture icon Download PDF DXF
MMC-40G 23374000 295 3000 50mm 24/65 15x5 43.00 picture icon Download PDF DXF
MMC-10E 23369000 75 3600 30mm 12/35 7x3 15.00 picture icon Download PDF DXF
MMC-5E 23368900 37 4000 25mm 12/30 7x3 7.50 picture icon Download PDF DXF

12V coil versions listed. 24V coils can also be supplied as standard. MMC 200 only available as 24V. Other special coil holders can be made available.
