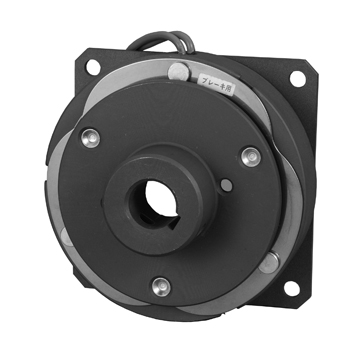

TMB Electromagnetic Brake

Electromagnetic Clutch/Brake

FEATURES

FAST RESPONSE
TM series brakes are dry type single disc units with no sliding parts. That means you can count on fast response time.

NO BACKLASH ARMATURE
By mounting the armature to its hub by means of leaf springs, blacklash is minimized and armature rattle is eliminated.

COMPACT DESIGN
The compact desgin of the TM series reduces mounting requirements and makes installation a snap.

MOUNTING FLEXIBILITY
The TM series can be provided with a flange mount or bearing mount design.

LOW INERTIA
Fast response and low inertia are due to the TM series low weight and compact design.

Click on column heading to sort table by category

Model
No.
Ogura
P/N
Static
Torque
(ft-lbs)
max
RPM
Bore
(inch)
Volts/
Watts
Keyway Wgt
(lbs)
PIC PDF DXF
TMB-0.6 23473300 4.5 5000 N/A 24/3 N/A 0.70 picture icon Download PDF DXF
TMB-0.6HI 23476500 4.5 5000 12mm 24/12 4x1.5 0.90 picture icon Download PDF DXF
TMB-0.6H 23476400 4.5 5000 12mm 24/12 4x1.5 0.90 picture icon Download PDF DXF
TMB-1.2 23431500 9 5000 N/A 24/4 N/A 1.50 picture icon Download PDF DXF
TMB-1.2H 23431600 9 5000 15mm 24/15 5x2 2.00 picture icon Download PDF DXF
TMB-1.2HI 23460300 9 5000 15mm 24/15 5x2 2.00 picture icon Download PDF DXF
TMB-2.5 23431700 18 4500 N/A 24/6 N/A 2.60 picture icon Download PDF DXF
TMB-2.5H 23431800 18 4500 20mm 24/22 5x2 3.50 picture icon Download PDF DXF
TMB-2.5HI 23460400 18 4500 20mm 24/22 5x2 3.50 picture icon Download PDF DXF
TMB-5 23431900 37 4000 N/A 24/6.1 N/A 4.40 picture icon Download PDF DXF
TMB-5H 23432000 37 4000 25mm 24/33 7x3 6.00 picture icon Download PDF DXF
TMB-5HI 23460500 37 4000 25mm 24/33 7x3 6.00 picture icon Download PDF DXF
TMB-10 23432100 75 3600 N/A 24/9 N/A 8.10 picture icon Download PDF DXF
TMB-10H 23432200 75 3600 30mm 24/38 7x3 11.00 picture icon Download PDF DXF
TMB-10HI 23460600 75 3600 30mm 24/38 7x3 11.00 picture icon Download PDF DXF
TMB-20 23432300 150 3000 N/A 24/11.5 N/A 15.40 picture icon Download PDF DXF
TMB-20H 23432400 150 3000 40mm 24/53 10x3.5 21.30 picture icon Download PDF DXF
TMB-20HI 23460700 150 3000 40mm 24/53 10x3.5 21.30 picture icon Download PDF DXF
